This Is Good

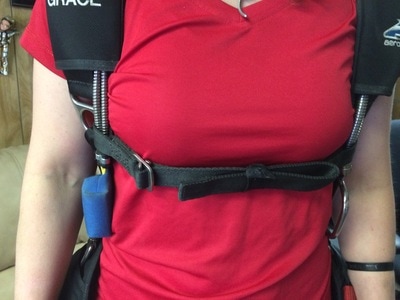

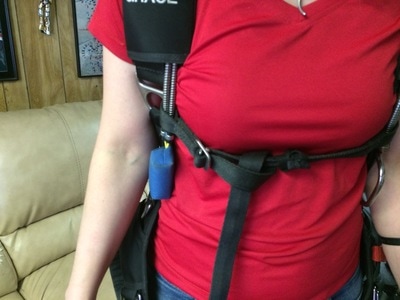

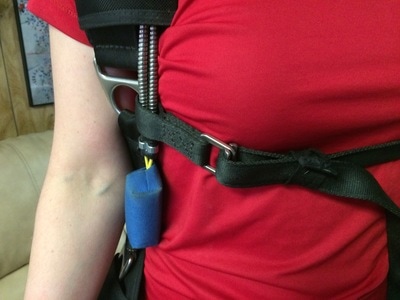

Chest Strap see metal on top of strap. excess stowed. tightened snugly, but allows movement and breathing
This Is Bad

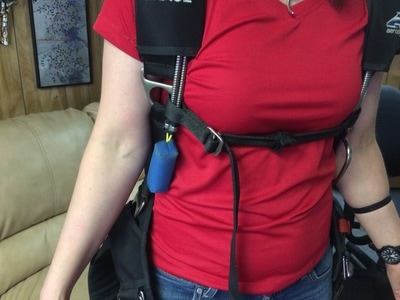

buckled correctly, but un-stowed excess will beat you in free-fall
This Is Ugly
( as in may Kill YOU)

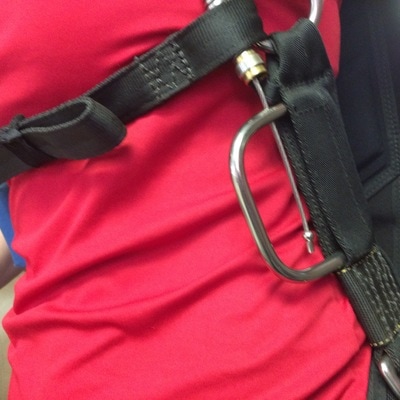

not locked in buckle will slip allowing you to fall out of harness on deployment

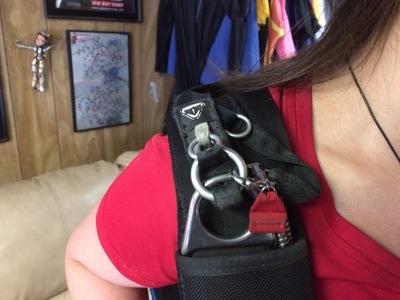

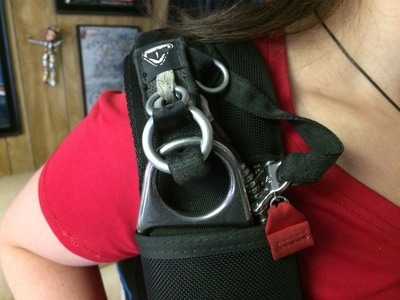

Rsl on ring and clear to reserve

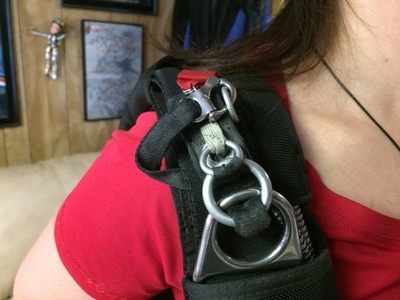

Ok, if you don't want to use the rsl, but like this it will do nothing

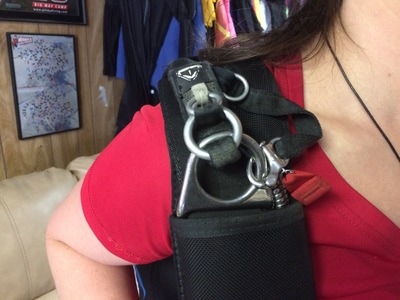

1) Can jam and prevent main release 2) guaranteed to jam and not allow main release 3) under reserve riser can jam.

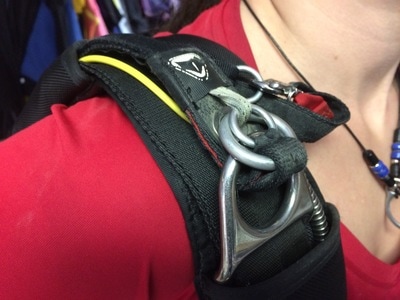

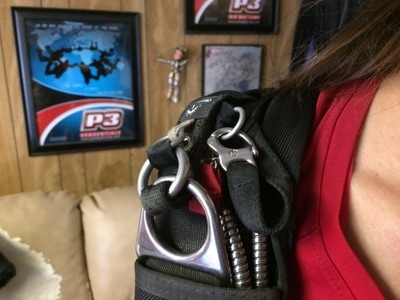

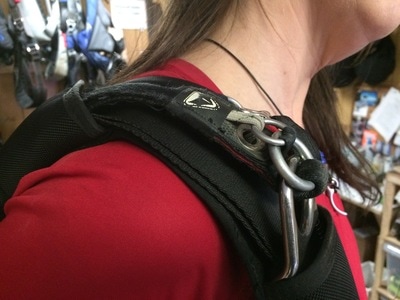

3 ring correct ( like a snow man)

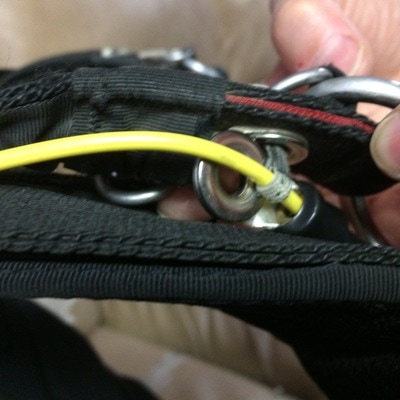

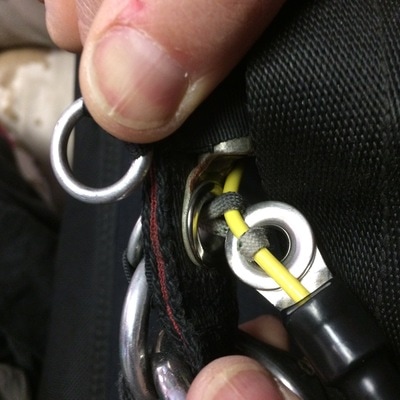

1) little ring through big puts entre load on little ring can cause riser break 2) loop not thru cable grommet can cause un-planned main release 3)cable back thru loop, can jam causing impossible cut away

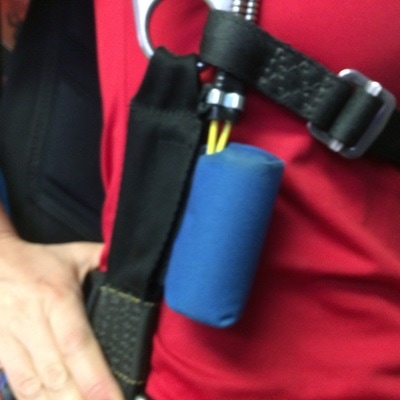

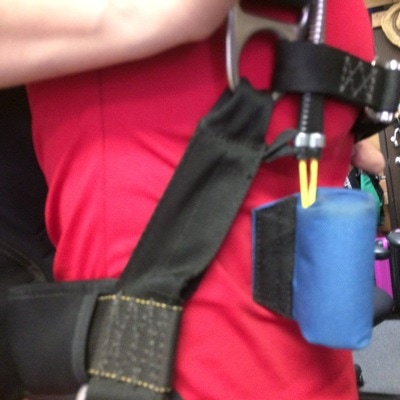

Cut away pillow correct.

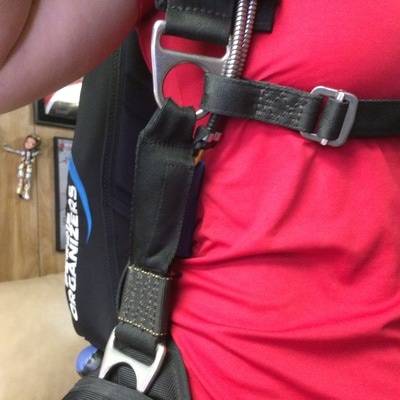

Un-secured difficult to find

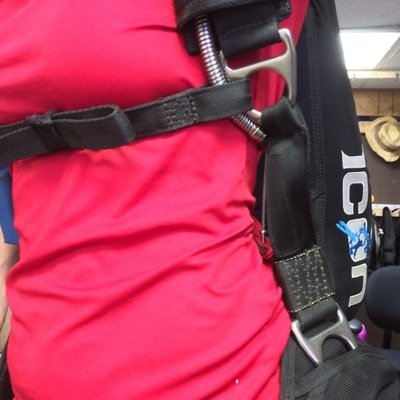

Folded under impossible to find

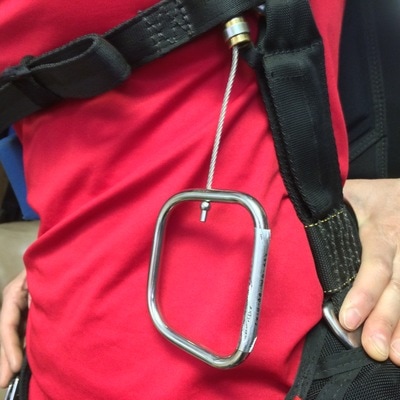

reserve correct
Loose difficult to find, may catch on something

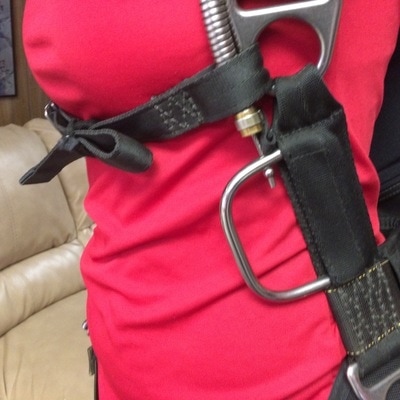

1) folded under impossible to find 2) cable too short arching may deploy

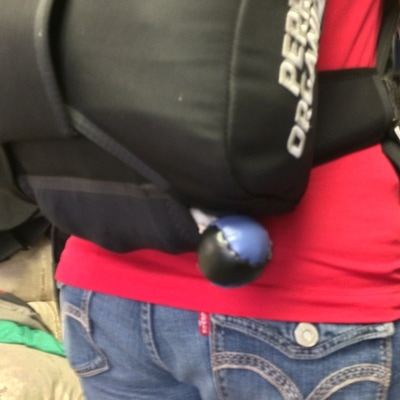

Main handle correct

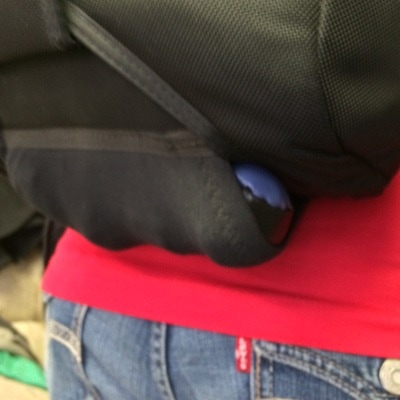

stuffed inside, difficult to dig out

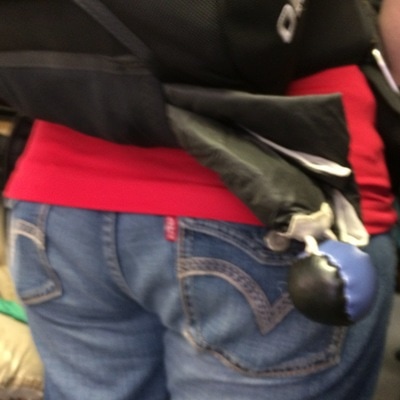

hanging out probable pre-mature deployment
